periNODE Modbus Smart Sensor Adapter

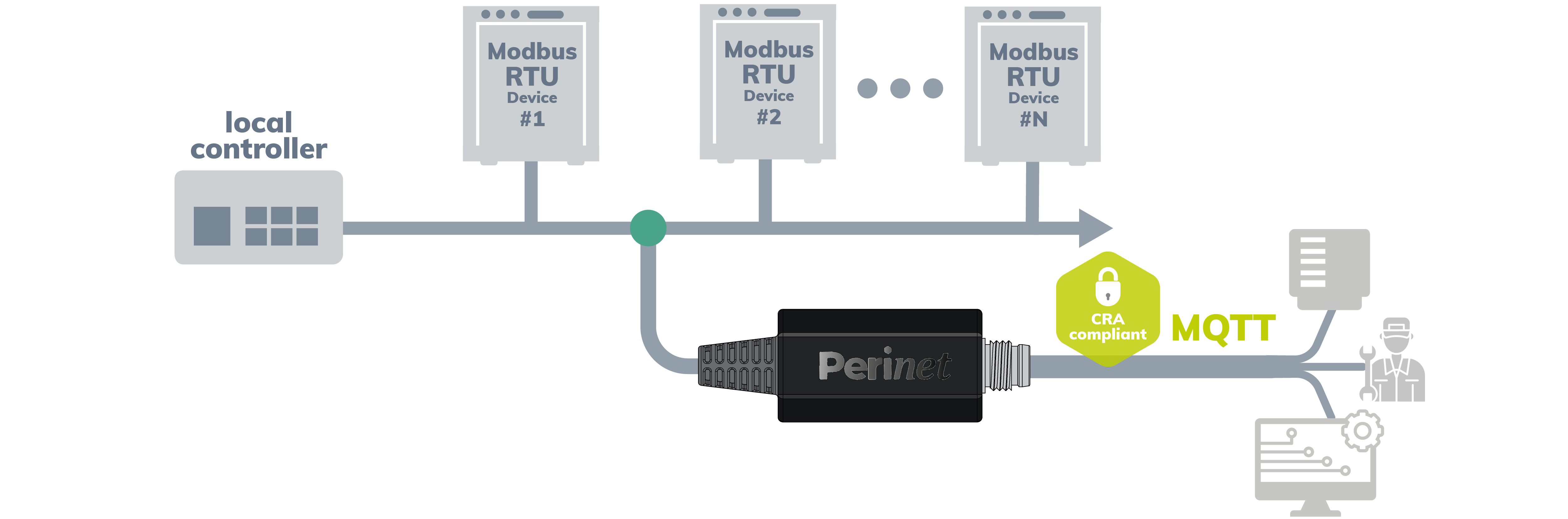

This periNODE Smart Adapter is connected directly to Modbus RTU device.


It turns the Modbus device instantly into an active intelligent network participant that can deliver digital data including physical units via Ethernet to any IT system or data hub for further processing and analysis. It turns your legacy system to a CRA compliant securely communicating product.


With periNODE, data communication intervals can be configured according to user-specific requirements, reducing network traffic and therefore costs.

periNODE Modbus

Scope of Application

periNODE Modbus enables a variety of IoT and IIoT use cases with secured Modbus TCP communication for Modbus devices with RS-485 Interface

Supported Devices

a.o. Modbus devices that operate with 24VDC and maximum 2A.

Key Features

  • IPv6 TCP/UDP connectivity
  • HTTP server with web GUI with sensor values and configuration page
  • RESTful API for access to sensor values and configuration
  • Sensor values via MQTT
  • Zeroconf networking
  • mDNS resolution of the unique periNODE hostname
  • DNS Service Discovery for https Service
  • additional Security with optional 256bit end-to-end encryption



Subject to property rights from patent file number:
102019126341.7
PCT/EP2020/077345

Field Network Interface

Type
M8 male connector IEC 63171-6:2020 (style 6P-M8C without shielding)

Communication
100Base-T1 Single Pair Ethernet (IEEE 802.3bw)

Input Voltage
24VDC (+/-10%)

Power Consumption
0.6W (sensor excluded)

Modbus Interface

Type
4x0.34mm², PUR, open-ended cable
Signal(Input and Output Mode)
Low / High (= Input Voltage)
Output Current
24 VDC
Max Baud Rate
1 Mbaud

Housing

Material
Polyamide hot melt resin
Protection Class
IP 65/67
Temperature Range
- 40°C...+ 70°C
Electromagnetic Compatibility (EMC)
Immunity for industrial environments
(EN 61000-6-2:2005, EN 61000-6-2:2005/AC:2005)
Emission standard for industrial environments
(EN 61000-6-4:2007, EN 61000-6-4:2007/A1:2011)
Compliance
CE, RoHS, WEEE
periNODE Modbus Product Summary
Smart Components
periNODE Modbus firmware Version 2



Order numbers and details

periNODE Modbus PRN.100.887 intelligent adapter for Modbus RTU devices
