periNODE 4-20mA Smart Sensor Adapter

This periNODE Smart Adapter has 1 input channel and is connected directly to sensors with 4-20mA / 0-20mA analog input.


This turns the passive analog sensor instantly into an active intelligent network participant that can deliver digital data including physical units via Ethernet to any IT system or data hub for further processing and analysis.


With periNODE, data communication intervals can be configured according to user-specific requirements, reducing network traffic and therefore costs.

periNODE 4-20mA

Scope of Application

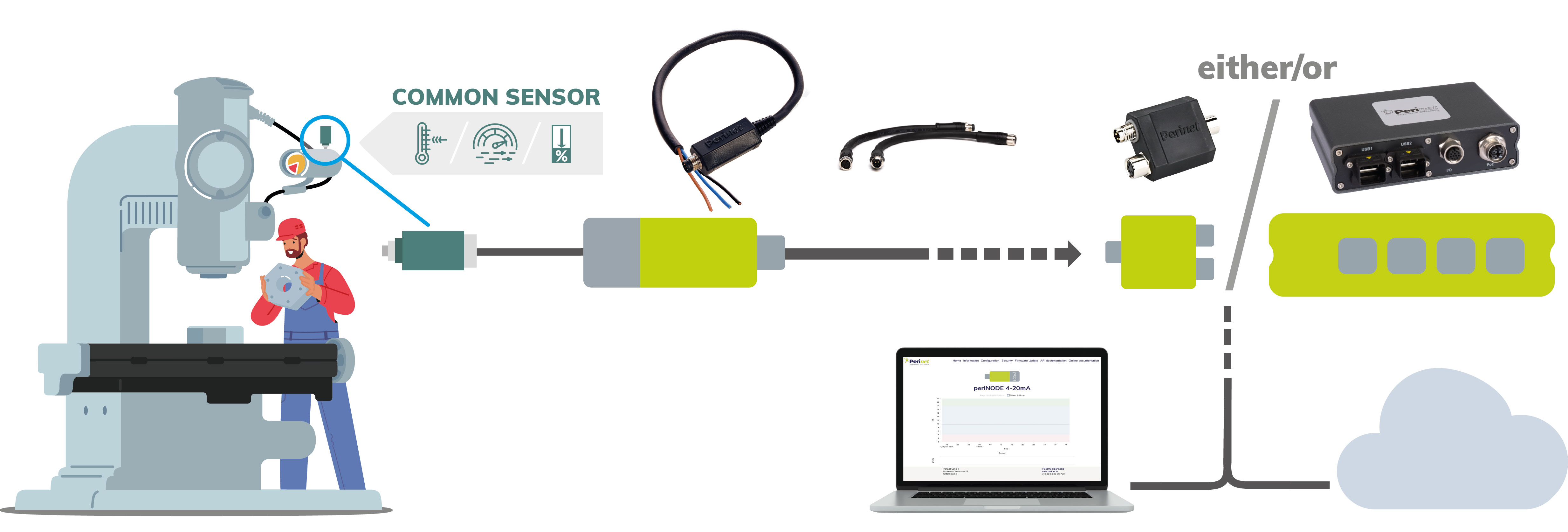

periNODE 4-20mA enables a variety of IoT and IIoT use cases whenever sensors feature a 4-20mA interface.

Supported Sensors

Any sensor with a 4-20 mA interface

Key Features

  • IPv6 TCP/UDP connectivity
  • HTTP server with web GUI with sensor values and configuration page
  • RESTful API for access to sensor values and configuration
  • Sensor values via MQTT
  • Zeroconf networking
  • mDNS resolution of the unique periNODE hostname
  • DNS Service Discovery for https Service
  • additional Security with optional 256bit end-to-end encryption



Subject to property rights from patent file number:
102019126341.7
PCT/EP2020/077345

Field Network Interface

Type
M8 male connector IEC 63171-6:2020 (style 6P-M8C without shielding)

Communication
100Base-T1 Single Pair Ethernet (IEEE 802.3bw)

Input Voltage
24VDC (+/-10%)

Power Consumption
0.6W (sensor excluded)

Sensor Interface

Type
3x0.34mm², PUR, open-ended cable
Signal(Input Mode)
1 channel for 4‐20mA / 0‐20mA  analog input
Output Voltage
pass-through (= Input Voltage)

Housing

Material
Polyamide hot melt resin
Protection Class
IP65/67
Temperature Range
- 40°C...+ 70°C
Electromagnetic Compatibility (EMC)
Immunity for industrial environments
(EN 61000-6-2:2005, EN 61000-6-2:2005/AC:2005)
Emission standard for industrial environments
(EN 61000-6-4:2007, EN 61000-6-4:2007/A1:2011)
Compliance
CE, RoHS, WEEE, REACH
periNODE 4-20mA Product Summary
Smart Components
periNODE 4-20mA firmware Version 2



Order numbers and details

periNODE 4-20mA PRN.100.885 intelligent adapter for 4-20mA type signals
