This periTUNNEL Ethernet Bridge is designed to extend your Ethernet over long distances with your legacy cabling not originally designed for Ethenet

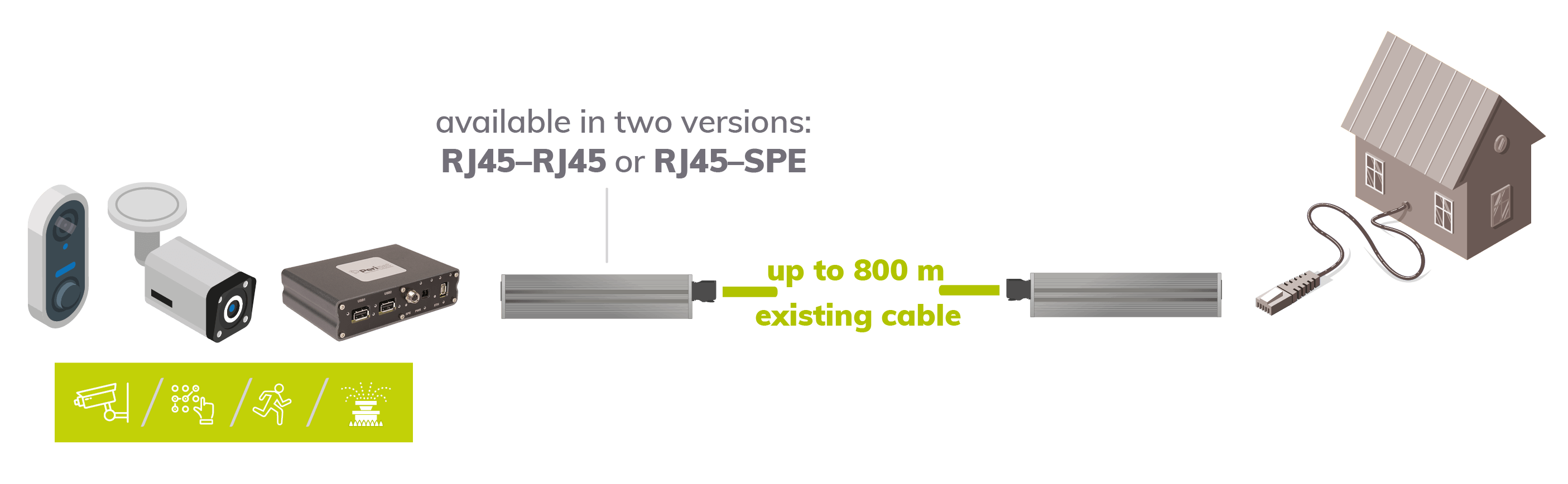

It brings Ethernet to places where it was previously not possible. With up to 100 Mbit/s over up to 800 metres, you can use existing 2- or 4-wire cables and save on new cabling.

With USB-C powering equipped periTUNNEL, you can extend your Ethernet range, have plug-and-play media conversion to SPE, and tunnel your non-Ethernet existing cabling over long distances in previously difficult scenarios.

periTUNNEL Long Distance Ethernet Tunnel

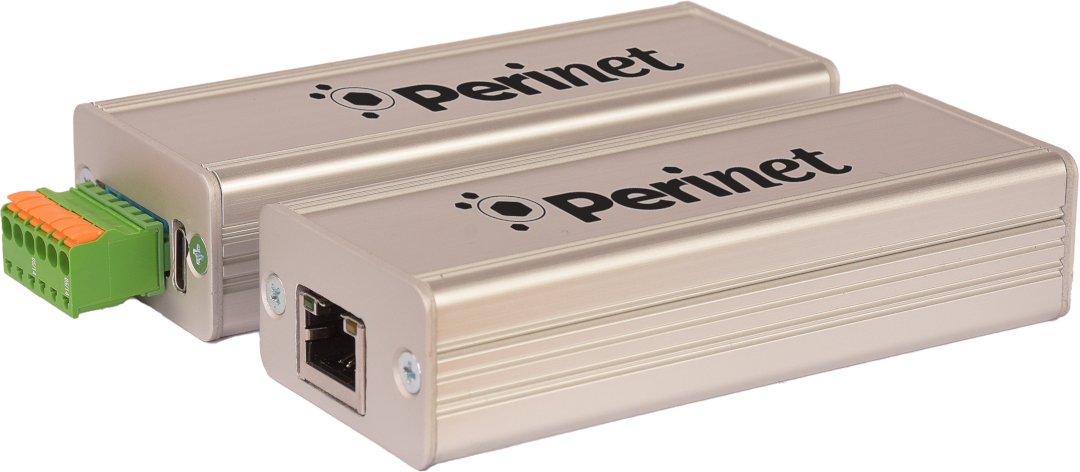

Connect your unshielded U/UTP 2-wire CAT.5E or 4-wire CAT.5e systems to the one end of the periTUNNEL pair and the other end to periTUNNEL that has alternatively an RJ45 or SPE interface. The periTUNNEL range extender comes with either RJ45-RJ45 or RJ45-SPE pairs on one side, in which both options have the 4-wire clamp module on the other side.

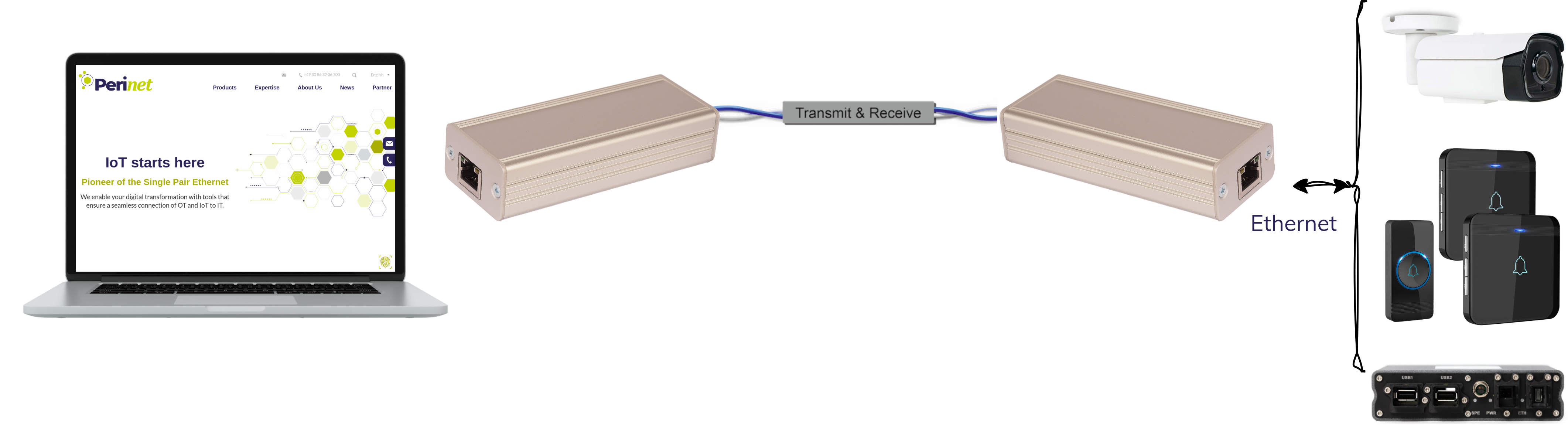

RJ45-RJ45

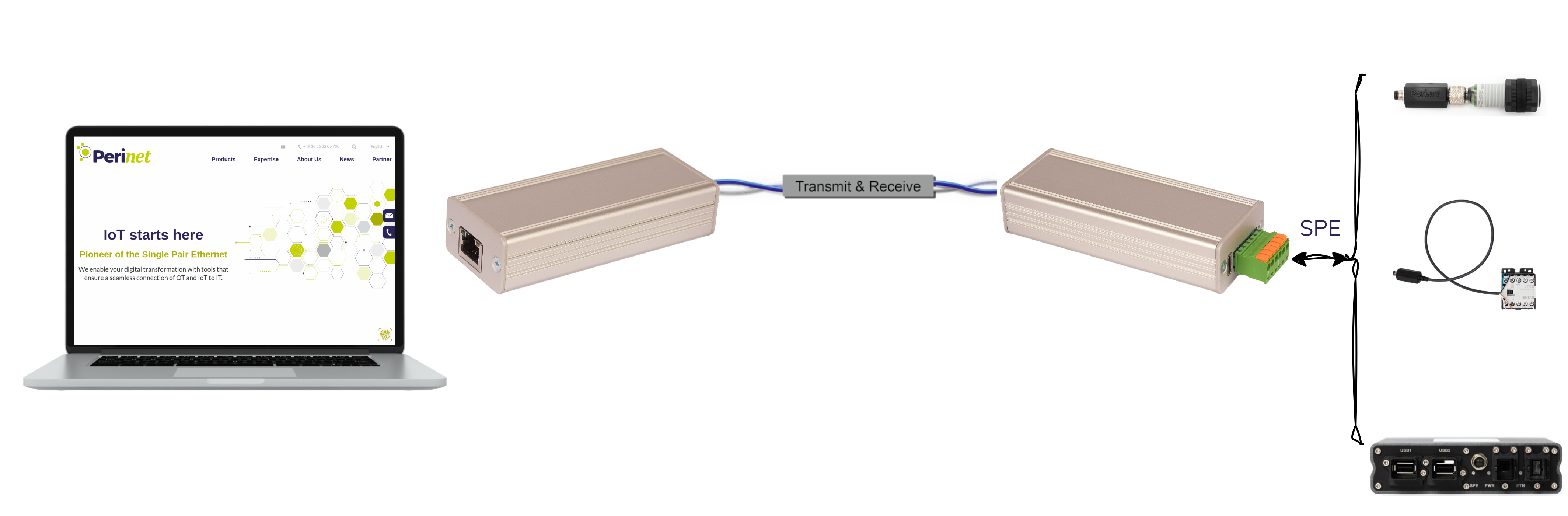

RJ45-SPE

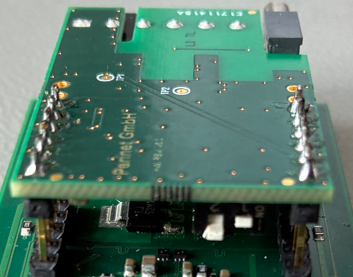

With an easy DIP-switch configuration, you can set the mode to SPE master or SPE slave. Highest working bandwidth is automatically selected and it works out of the box once powered up with USB-C in auto mode.

2-wire CAT.5e unshielded standard U/UTP can support 100Mbit/s in the range up to 300 meters and 10Mbit/s in the range up to 800 meters, where 4-wire CAT.5e can support 100Mbit/s up to 500 meters range.

periTUNNEL Set includes:

On the pin in tunnel connector side:

  • either 100Base-T1 SPE or RJ45 depending on the set chosen

On the pin out tunnel connector side:

  • USB-C 5VDC power only primary power supply

On the har-flexicon clamp side

  • 2 secondary power supply pins 24VDC and GND
  • 4 Data Pair pins for up to 2 Data Pairs, supporting 10Mbit/s or 100Mbit/s depending on 1 or 2 pairs used and the range

periTUNNEL operates:

  • in -40°C to 85°C temperature range
  • with 5V USB-C or 24V DC operating voltage
  • with 1W maximal power consumption

Order Number and Details

periTUNNEL Set RJ45-RJ45 PRN.000.073 Long Distance Ethernet Tunnel
periTUNNEL Set RJ45-SPE PRN.000.074 Long Distance Ethernet Tunnel to Single-Pair-Ethernet Tunnel
