The periCORE Development Kit provides a full-featured development environment. It is used for application-specific firmware development for the periCORE Single Pair Ethernet (SPE) communication module. Due to its modular hardware design, the periCORE Development Kit supports all interfaces of the periCORE module in a variety of combinations.

The modular hardware makes it easy to extend the periCORE Development Kit with customised interfaces, e.g. for dedicated sensors. The kit is supplied with hardware and software components.

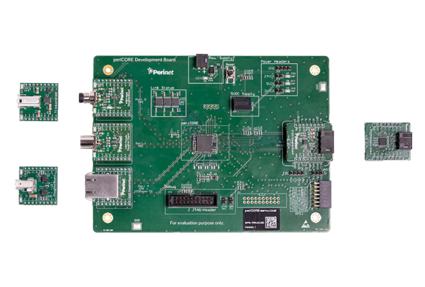

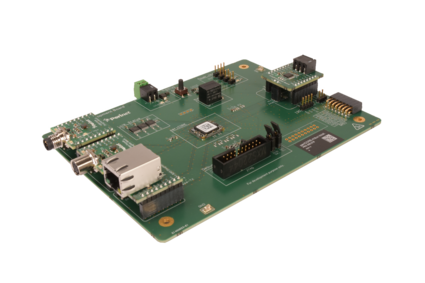

periCORE Development Kit

Connect your existing electronics to the development board via daughterboards, configure the network interfaces as required and adapt the firmware for your sensor/actuator/small device. You will have completed the software development for your product in lightning speed, as the basic firmware provided already implements all general embedded firmware functions such as firmware updates, web server, security functions etc. ready for production. Just change the specific function, e.g. conversion of the analog signal into a unit-based value (pressure, frequency, temperature, ...) and adapt the display on the device's website.

The development kit consists of:

  • Devboard with slder-on periCORE Module and the following auxiliary boards.
    • 2 channel GPIO 24V
    • 0-10V Input
    • PT100 Input
    • I2C temperature/humidity sensor
    • M8 SPE Hybrid Male
    • M8 SPE Hybrid Female
    • SPE Female
    • 2x SPE Terminals
    • RJ45 (Fast Ethernet)
  • periMICA with debugging software
  • DebuggerDevelopment environment as Docker container (compiler, libraries)
  • Reference implementations for the enclosed sensor boards

Order numbers and details

periCORE PRN.000.001 periCORE single pair ethernet communication module
periCORE Development Board PRN.000.019 Minimal firmware development setup
periCORE Development Kit PRN.000.020 Full featured firmware development setup
