periLINE basic

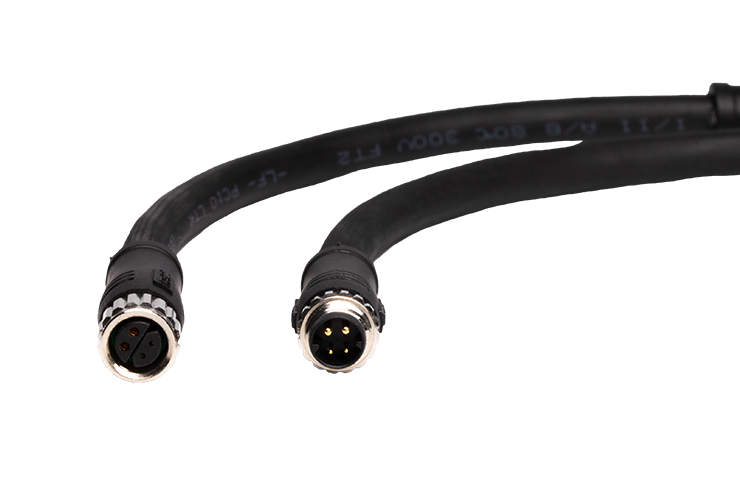

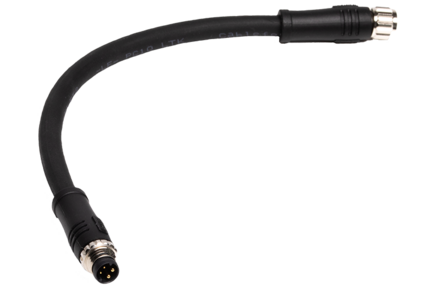

All periLINE basic hybrid SPE cables are configured ready for plugging in with M8 circular connectors in accordance with the IEC 63171-6 standard and are available in various cable lengths. The galvanic isolation of signal and power supply lines enables uncomplicated plug-and-play with different network topologies and feed points.
With the compact design of the connectors, the small diameter and the high flexibility with small bending radiuses, these cables open up a wide range of opportunities, even for retrofitting.
Perinet Interface (Power In)
Type
M8 male connector according to IEC 63171-6:2020 (style 6P-M8C without shielding)
Communication
100BASE-T1 Single Pair Ethernet (IEEE 802.3bw)
Power
24VDC input

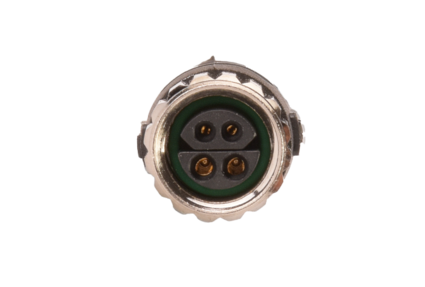

Perinet Interface (Power Out)
Type
M8 female connector according to IEC 63171-6:2020 (style 6P-M8C without shielding)
Communication
100BASE-T1 Single Pair Ethernet (IEEE 802.3bw)
Power
24VDC output
Cable
Type
Special-PVC control cable adapted to DIN VDE 0285-525-2-51/DIN EN 50525-2-51
Compliance
ROHS 2.0 requirements
Material
Conductor – Braiding
Stranded Tinned Copper – Tinned Copper
Insulation – Separator/Filler – Jacket
PP/SR-PVC – Cotton – PVC
Physical and Electrical Performance
Rated Voltage & Temperature
30V, +80°C
Temperature Range
-40°C...+80°C
Max. DC Conductor Resistance at 20°C
26AWG: 150Ω/km; 20AWG: 36.7Ω/km
Min. Insulation Resistance at 20°C
100MΩ*km
Characteristic Impedance
Impedance
100±15Ω, 1MHz
Dielectric Strength
2.0kV/1min, AC
Order numbers and details
| periLINE 0.2m | PRN.000.017 | Hybrid-SPE-cable with M8-connector |
